FoodPlus Machines Private Limited

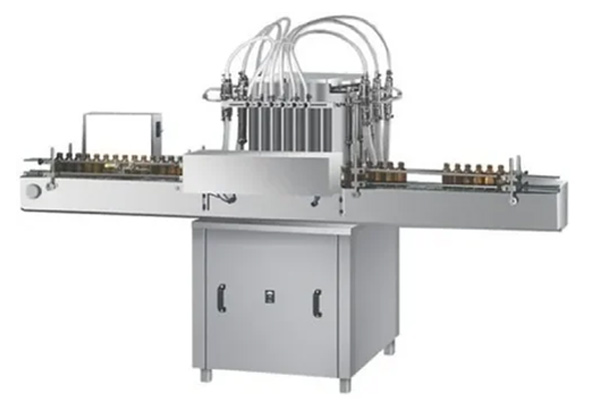

Technical Specifications & Features:

Technical Specifications & Features:

Direction: Left to right
Production Speed: 20 to 40 bottle/min (depends on filling volume nature of liquid & Bottle/neck size)
Filling Nozzles: Four Nozzle (SS 316)
Syringe Fill Range: 10ml to 500ml (With Change Parts)
Electrical: 220V A.C. Single phase
Power: 2.0 HP
Container Size: 30mm to 100mm Diameter, Max height 280mm
No Bottle – Filling stop system
All contact parts made of SS-316 material.
Automatic in-feed and exit of bottles.
Pneumatic Control bottle stopper.
Reciprocating filling nozzle with self-centring device to avoid foaming
Minimum change over time.
Vibration free construction for trouble free performance.
Automatic bottle counter system.

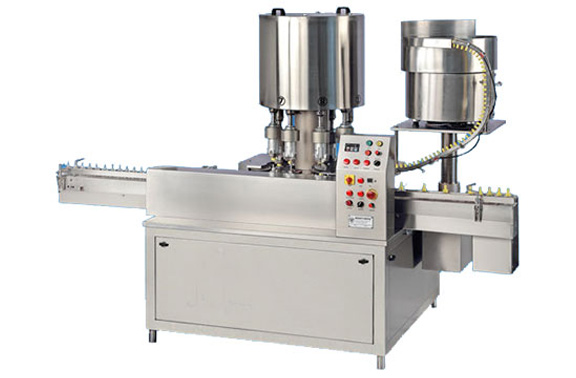

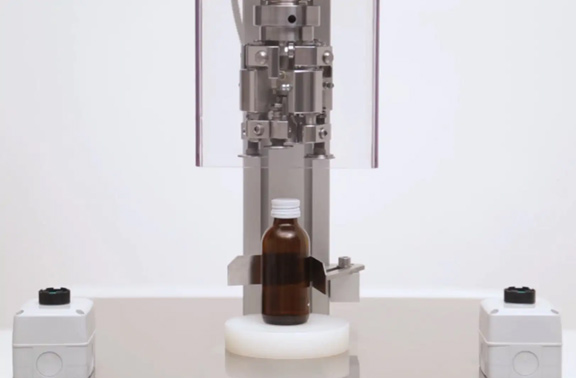

Technical Specifications & Features

Direction: Left to Right
Cap Diameter: 13 to 38mm (Change part included)
Electrical Rating:
- 0.25 hp/ 1400 RPM motor for pressing device 230 Volts AC 50Hz
- 0.25 hp/ 1400 RPM motor for conveyor drive
Change Parts Required:
- Container: star wheel back guide, feed worm
- Cap: Plunger, Delivery chute, Vibratory bowl
No bottle – No cap system.
Cap feeder with variable speed system for feeding control of caps
Minimum change over time
Machine is constructed of SS-304.
Specially designed bowl is provided to increase storage capacity of caps.
Sealing pressure can be varied to suit different gauges and size of caps.
Low noise level – Less power consumption

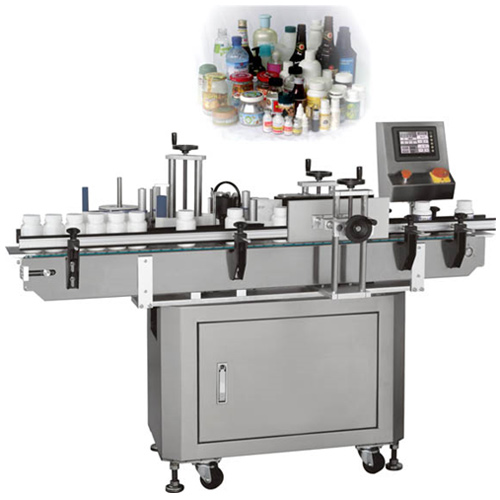

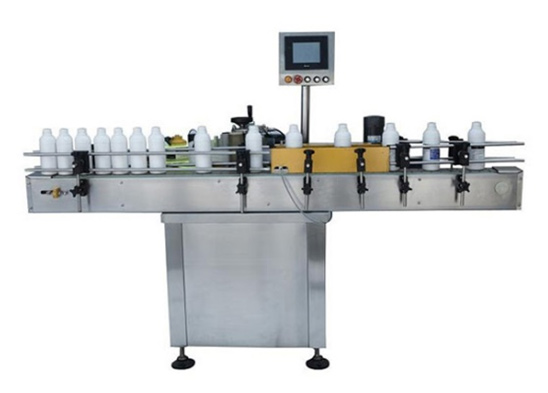

1. Technical Specification & Features:

Direction: Left to Right
Output: Up to 120 containers / minute
Electrical Rating:
- 0.25 hp / 1400 RPM Gear motor for variable speed
- 0.50 hp / 1400 RPM Motor for pressing device
- DC 6V Stepper motor
Power Characteristics: 230 Volts AC 50Hz
Construction: Top stainless steel matt finish & S.S. Pipe
Input Specification: Round container Dia.: 25 to 80mm
Label Roll Diameter: 30 to 180mm (LT 16 to 100mm (W)
No bottle – Labelling stop system.
User friendly label placing adjustment.
Automatic speed control system with help of A.C. drive.
Machine is constructed of SS-304
Automatic bottle counter system.

Liquid Packing Machine
